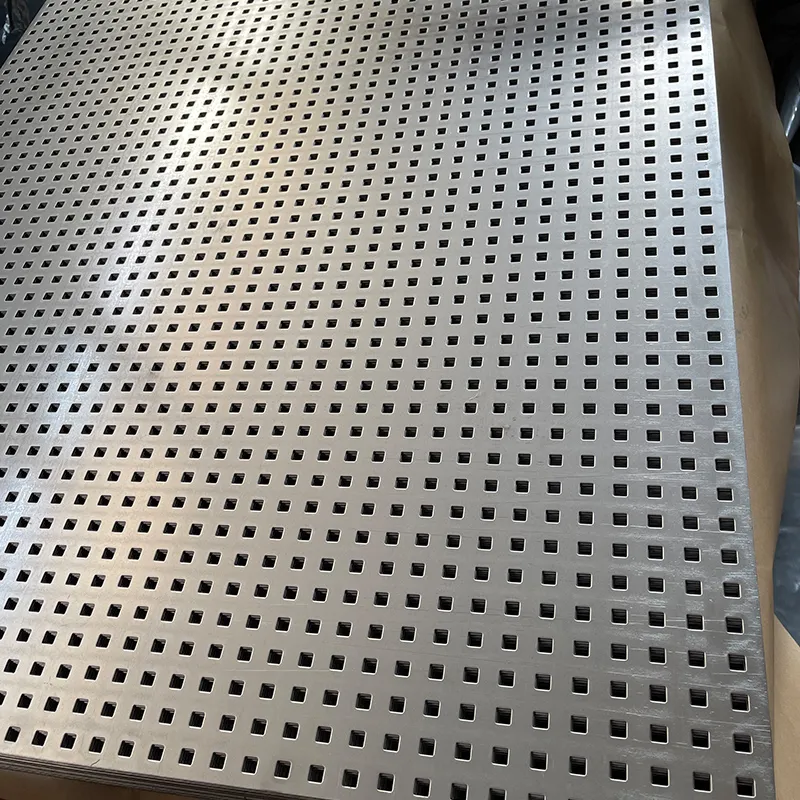

Square Hole Aluminum Perforated Metal

Square hole aluminum perforated metal offers a number of important advantages for specific industries and applications. Our factory is an professional square hole perforated metal supplier that can provide the right solution for your company .For many people, perforated metal square hole patterns are more visually appealing than round holes, a key consideration when the aesthetics of the product are of primary importance. Additionally, square hole perforated metal provides a larger open area, making it easier for bulkier materials — or, in the case of audio equipment, sound — to pass through.

Inquire Now

Our factory has advanced CNC stamping production equipment, which can punch high-quality products, because the weight of the aluminum plate itself is very light, and the mesh is uniform, the aluminum plate is not easy to corrode, and the thickness of the plate that can be punched: from 0.5mm to 5mm, We can also provide you with a series of follow-up processing, including: leveling, cutting, deep processing, etc.

Features

1. High porosity, widely used in decoration, ventilation, etc.

2. The aluminum plate is light in weight, good in plasticity, and can be bent;

3. It can carry out anti-corrosion treatment such as plastic spraying treatment, etc., which greatly increases the service life

Specification

Square hole size	Square pitch	Open area	Thickness	Sheet size	Picture
3mm	5mm	36%	0.7mm~1.5mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
4mm	7mm	32.65%	0.7mm~1.5mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
5mm	8mm	39.06%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
5mm	16mm	9.77%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
6mm	9mm	44.44%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
8mm	10mm	64%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
8mm	24mm	11.11%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
10mm	14mm	51.02%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
10mm	30mm	11.11%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
15mm	20mm	56.25%	1.5mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
15mm	40mm	14.06%	1.0mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
20mm	25mm	64%	1.0mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
25mm	30mm	69.44%	1.0mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
25mm	35mm	51.02%	1.0mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
Special custom fabricated to your design
