Perforated Stainless Steel Plate
Home > Products > Perforated Mesh > Perforated Stainless Steel Plate > Perforated Round Hole Stainless Steel Sheets

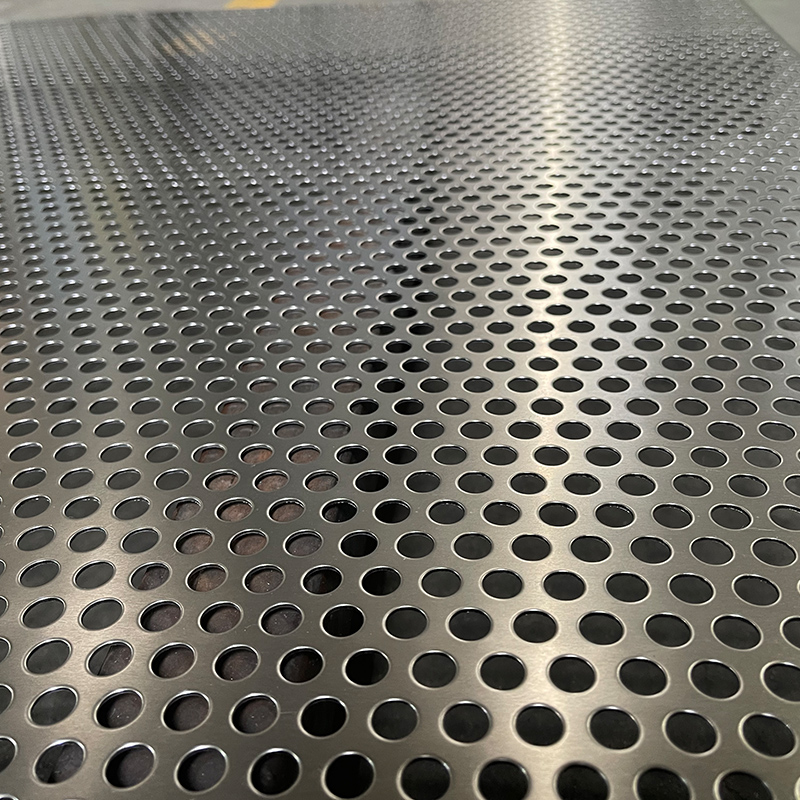

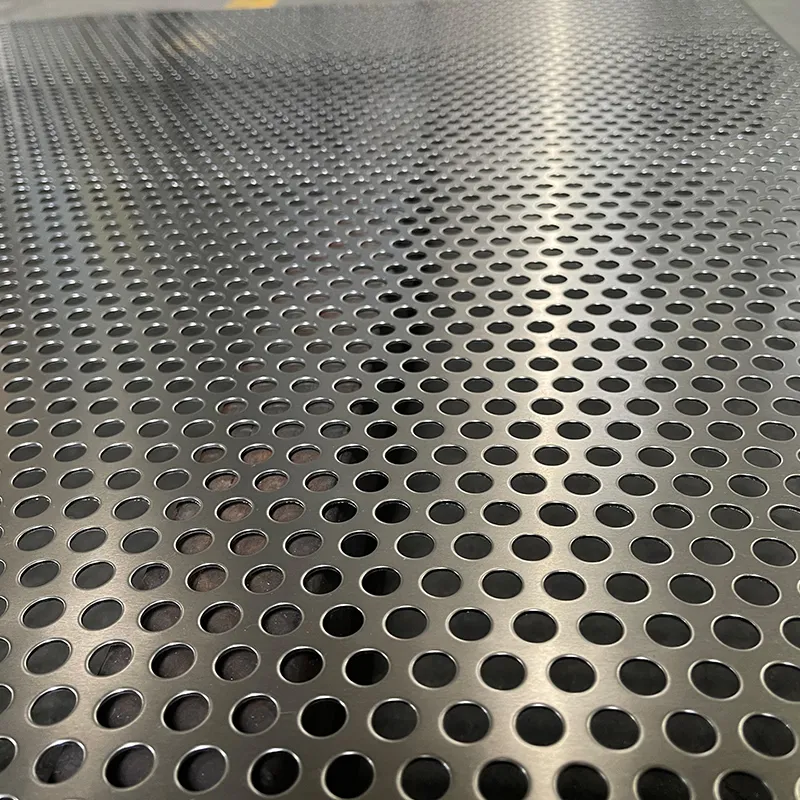

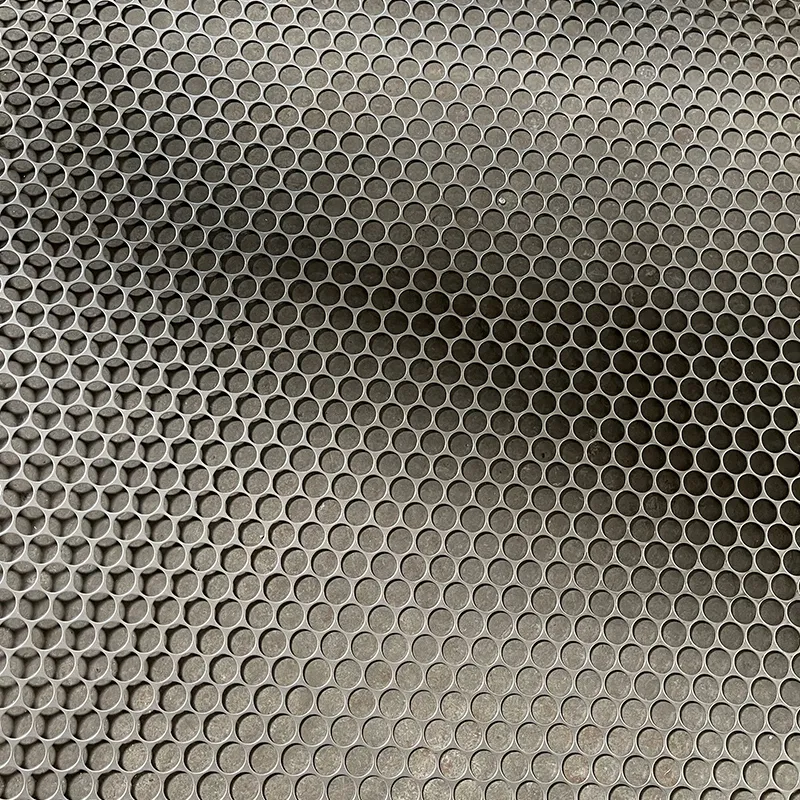

Perforated round hole stainless steel sheets are usually made of 304 or 316 stainless steel. Because it is strong, corrosion resistant and visually appealing, quality perforated stainless steel can be used for a variety of applications.
316 stainless steel round hole perforated sheet is normally used in natural gas/petroleum/oil, aerospace, food and beverage, industrial, cryogenics, architectural, and marine applications. 316 perforated sheet has high strength and excellent corrosion resistance, including in marine or extremely corrosive environments. It is stronger, though less malleable and machinable than 304.
Stainless steel is an alloy material containing chromium, which resists iron oxide formed by interaction with oxygen. This provides excellent corrosion resistance and a glossy finish, which, combined with its low maintenance requirements, makes stainless steel perforated sheets ideal for many applications.
Perforated Round Hole Stainless Steel Sheets
YILIDA has the most advanced CNC punch equipment in China, and the product accuracy can reach+/-0.15MM. At the same time, we provide a series of follow-up processing, and the common surface treatment is polishing. In addition, there are laser cutting, bending, welding, etc.
Among them, stainless steel microperforated mesh is widely used in filtration systems such as industrial/chemical industry, medical pharmacy and household appliances. The main characteristics of these products are that the mesh aperture is small (0.03-0.1mm) and the mesh is dense. Therefore, stamping, laser and other processes have certain limitations. YILIDA suggests that etching process can be used to process these products according to their needs. Etching can solve the processing problems of large batch, micro mesh and high density, and won’t affect the material performance, and won’t produce pressure deformation on the surface.
Features
Provides high corrosion resistance without the need for finishes
Sustainable, reusable materials
Recyclable, environmentally friendly materials
Can be coated for a customized appearance and to further increase service life
High strength and hardness allows for safety and protection applications
Clean, smooth, glossy surface
Non-toxic, clean material for food processing applications
Specification
| Round, in 60°staggered rows | |||
| Code | Hole Dia (R)-mm | Pitch(T)-mm | Open Area% |
| R0.8T2 | 0.8 | 2 | 14.6 |
| R1T2 | 1 | 2 | 22.8 |
| R1.2T2.5 | 1.2 | 2.5 | 21 |
| R1.5T3 | 1.5 | 3 | 22.8 |
| R2T3 | 2 | 3 | 40.4 |
| R2T3.5 | 2 | 3.5 | 30 |
| R3T5 | 3 | 5 | 33 |
| R4T6 | 4 | 6 | 40.4 |
| R5T8 | 5 | 8 | 35 |
| R6T9 | 6 | 9 | 40 |
| R8T11 | 8 | 11 | 48.1 |
| R10T13 | 10 | 13 | 53.8 |
| R10T15 | 10 | 15 | 40.4 |
| R20T27 | 20 | 27 | 49.9 |
Read More
| Round, in 45°staggered rows | |||
| Code | Hole Dia (R)-mm | Pitch(T)-mm | Open Area% |
| R2T6 | 2 | 6 | 17.4 |
| R3T8 | 3 | 8 | 22.1 |
| R4T8 | 4 | 8 | 39.3 |
| R5T9 | 5 | 9 | 48.5 |
| R6T10 | 6 | 10 | 56.5 |
| R7T14 | 7 | 14 | 39.3 |
| R8T18 | 8 | 18 | 31 |
| R12T28 | 12 | 28 | 28.8 |
| R15T40 | 15 | 40 | 22.1 |
| R16T40 | 16 | 40 | 25.1 |
| R26T50 | 26 | 50 | 42.5 |
Read More
| Round, in straight rows | |||
| Code | Hole Dia (R)-mm | Pitch(T)-mm | Open Area% |
| R2T4 | 2 | 4 | 19.6 |
| R3T6 | 3 | 6 | 19.6 |
| R4T8 | 4 | 8 | 19.6 |
| R5T8 | 5 | 8 | 30.7 |
| R8T12 | 8 | 12 | 39.4 |
| R12T15 | 12 | 15 | 50.2 |
| R15T20 | 15 | 20 | 44.2 |
| R20T30 | 20 | 30 | 34.9 |
| R30T50 | 30 | 50 | 28.3 |
Read More
Best-selling Hole Patterns
Application
Security and Protection
Punching Anti-skid Plate
Punching anti-skid plate mainly includes crocodile mouth hole type anti-skid plate, O-shaped hole anti-skid plate. Drum-type anti-skid plate, etc. For other types or new types of anti-skid plates, we can make molds according to customers' drawings, which can be processed into stair treads, steps and aisle channels, etc.
Partition Wall
Partition wall plays a vital role in interior decoration. It frequently appears in offices area, restaurant, drawing room, exhibition spaces or partition designs between drawing and dining. The designers asked that the partition wall should be both beautiful and practical.
Expanded Aluminium Security Screens for Windows & Doors
Expanded Aluminium Security Screens for Windows & Doors
Aluminum expanded window screen is made of aluminum expanded mesh. It is more strong in structure than woven wire window screen, and with light weight. AkzoNobel outdoor powder is used for the surface coating. Aluminum expanded screen is widely used for window screen, security door screen and decoration screen, cover screen.
Gutter Net
Leaf guards, also known as gutter covers, are designed for drying out pesky leaves, twigs, pine needles and other debris on the surface.
