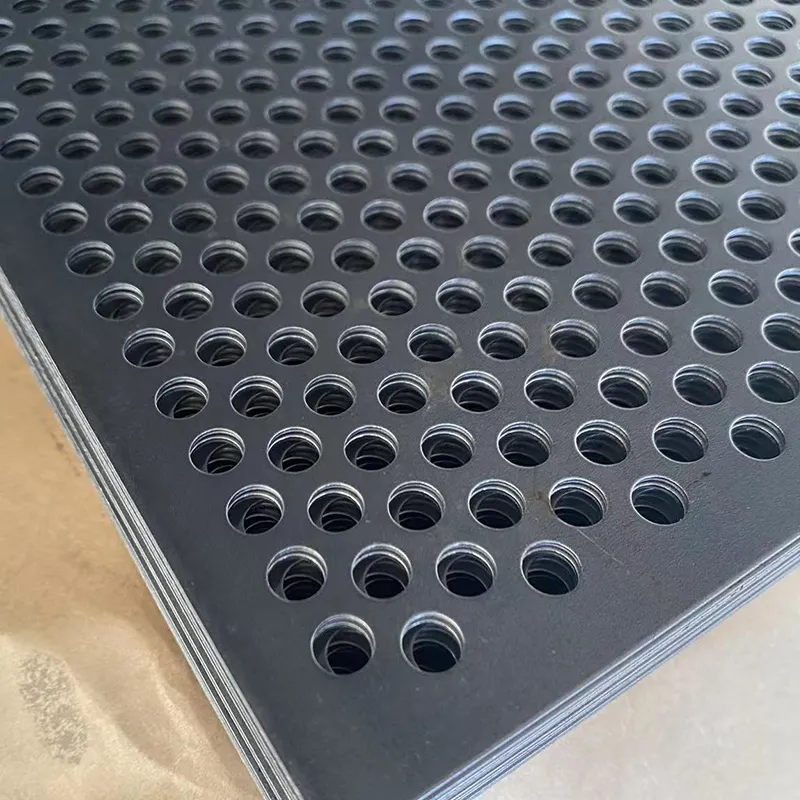

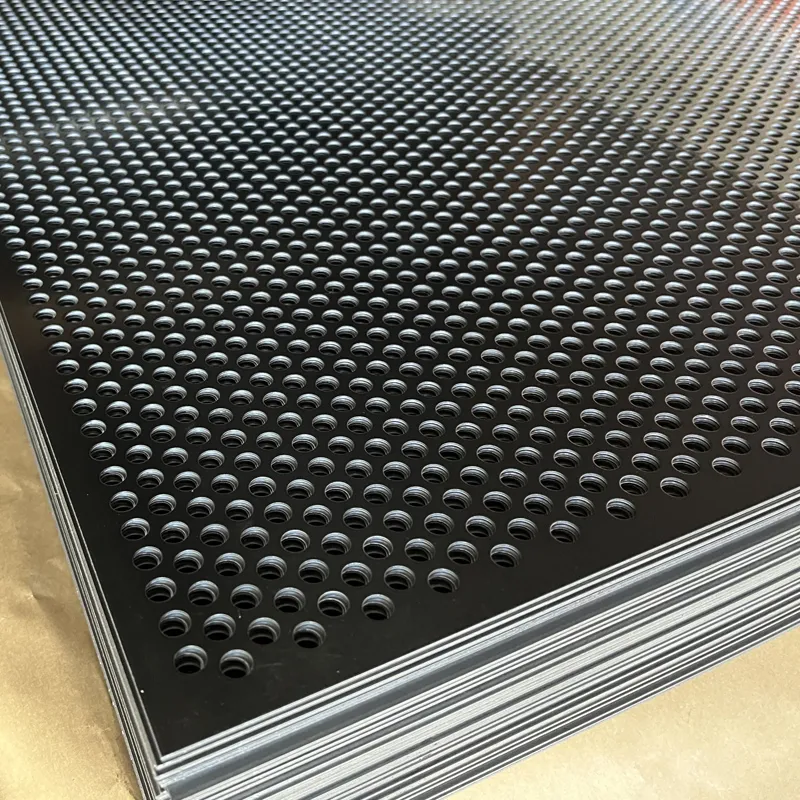

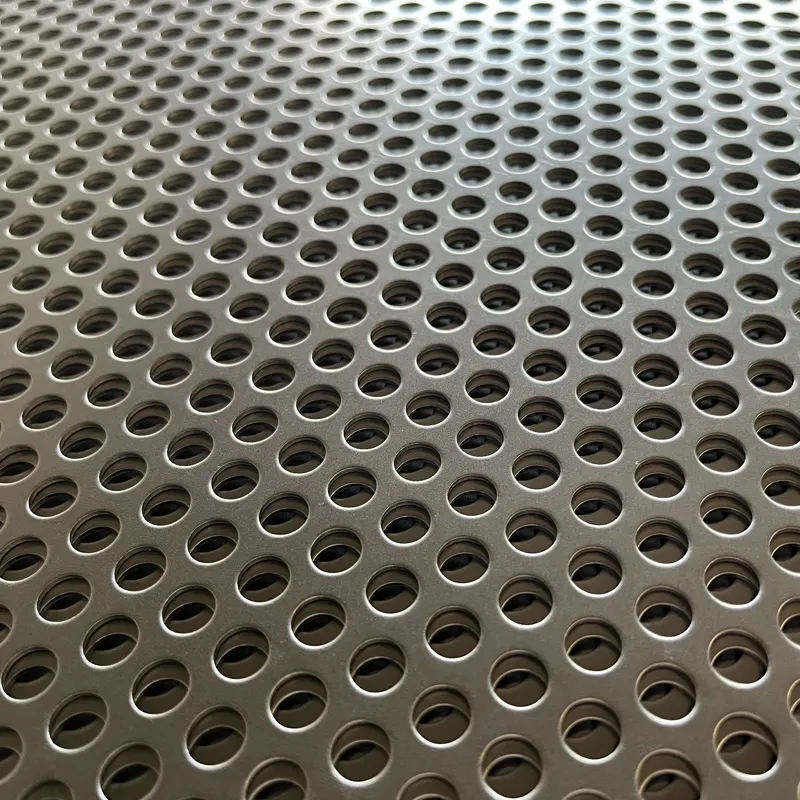

Round Hole Perforated Steel Mesh

Perforated Metal is common usage in our daily life. It is very strong and has an aesthetic appearances, it is the most popular type because of its inherent strength, its multitude of varied open areas and attractive appearance. Perforated metal can be used in filter of automobiles internal-combustion engine, sieving of mine, medicine, grain, sound insulation of room, ventilate of grain store, etc. We offer various pattern of perforated metal, can apply on mild steel with different pattern.

Inquire Now

Our mild steel perforated metal has low price and high strength. It is widely used in construction and industry.

mild steel is not very corrosion resistant. We can provide galvanization, powder coating to protect it from corrosion.

Features:

Ventilation, light and air penetration and anti-sand property.

High strength and security.

Wide application for architectural and decorative aspects.

Aesthetic appearance.

Low maintenance.

Easy installation.

Specification

Round, in 60°staggered rows
Code	Hole Dia (R)-mm	Pitch(T)-mm	Open Area%
R0.8T2	0.8	2	14.6
R1T2	1	2	22.8
R1.2T2.5	1.2	2.5	21
R1.5T3	1.5	3	22.8
R2T3	2	3	40.4
R2T3.5	2	3.5	30
R3T5	3	5	33
R4T6	4	6	40.4
R5T8	5	8	35
R6T9	6	9	40
R8T11	8	11	48.1
R10T13	10	13	53.8
R10T15	10	15	40.4
R20T27	20	27	49.9

Round, in 45°staggered rows
Code	Hole Dia (R)-mm	Pitch(T)-mm	Open Area%
R2T6	2	6	17.4
R3T8	3	8	22.1
R4T8	4	8	39.3
R5T9	5	9	48.5
R6T10	6	10	56.5
R7T14	7	14	39.3
R8T18	8	18	31
R12T28	12	28	28.8
R15T40	15	40	22.1
R16T40	16	40	25.1
R26T50	26	50	42.5

Round, in straight rows
Code	Hole Dia (R)-mm	Pitch(T)-mm	Open Area%
R2T4	2	4	19.6
R3T6	3	6	19.6
R4T8	4	8	19.6
R5T8	5	8	30.7
R8T12	8	12	39.4
R12T15	12	15	50.2
R15T20	15	20	44.2
R20T30	20	30	34.9
R30T50	30	50	28.3
